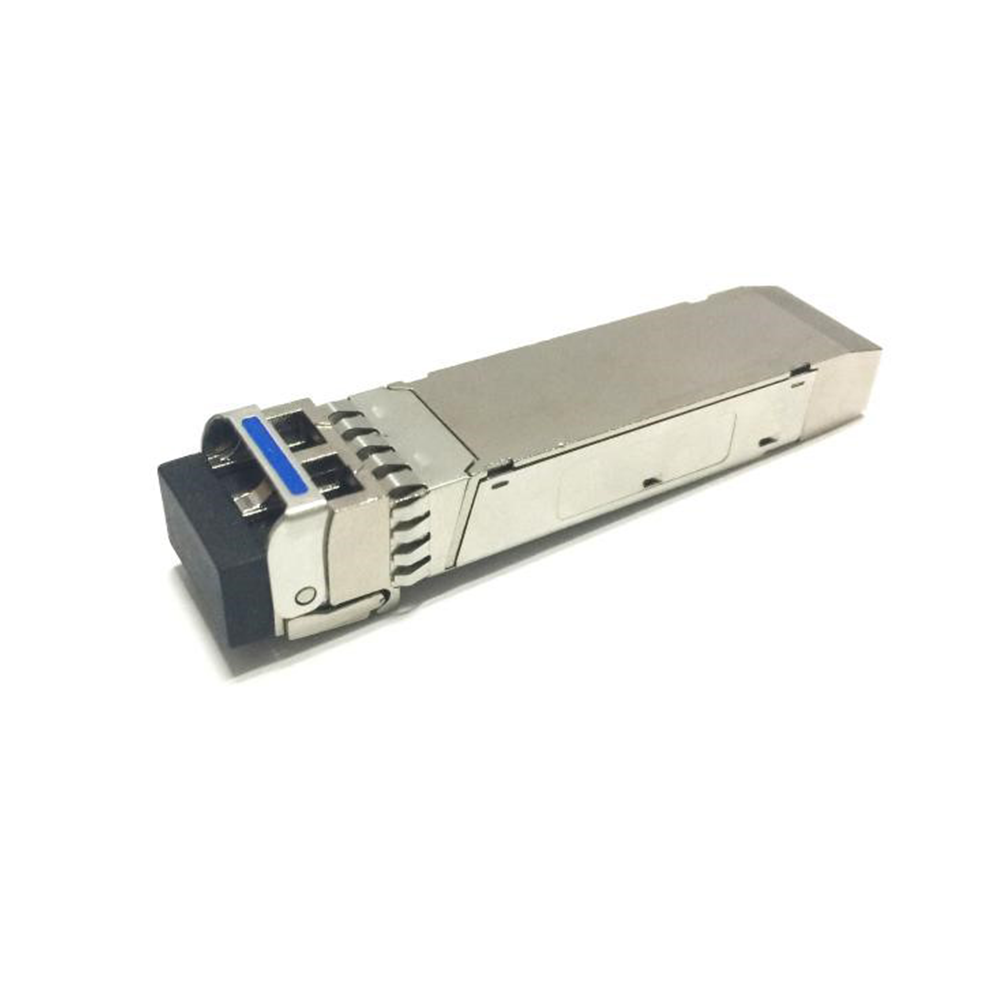

10G-LR
The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 10km transmission distance with SMF.
The transceiver consists of three sections: a Un-cooled 1310nm DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit.
WARNINGS - Handling Precautions: This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow guidelines according to proper ESD procedures.
Laser Safety: Radiation emitted by laser devices can be dangerous to human eyes.
Avoid eye exposure to direct or indirect radiation.
FEATURES
Supports 10Gb/s serial optical interface;
Up to 10km transmission on SMF;
1310nm DFB laser and PIN receiver;
Hot-pluggable SFP+ footprint;
SFI high speed electrical interface;
Built-in digital diagnostic functions;
Single +3.3V power supply;
Power consumption less than 1.0 W;
Operating case temperature: -5~+70°C;
SFP+ MSA package with duplex LC connector;
APPLICATION
10GBASE-ER/EW 10G Ethernet;
Other optical links;
STANDARD
Compliant with SFF-8472 and SFP+ MSA;
Compliant to SFF-8431 and SFF-8432;
Compliant with IEEE 802.3ae 10GBASE-ER/EW;
Compliant with FCC 47 CFR Part 15, Class B;
Compliant with Telcordia GR-468-CORE;
RoHS Compliant;
