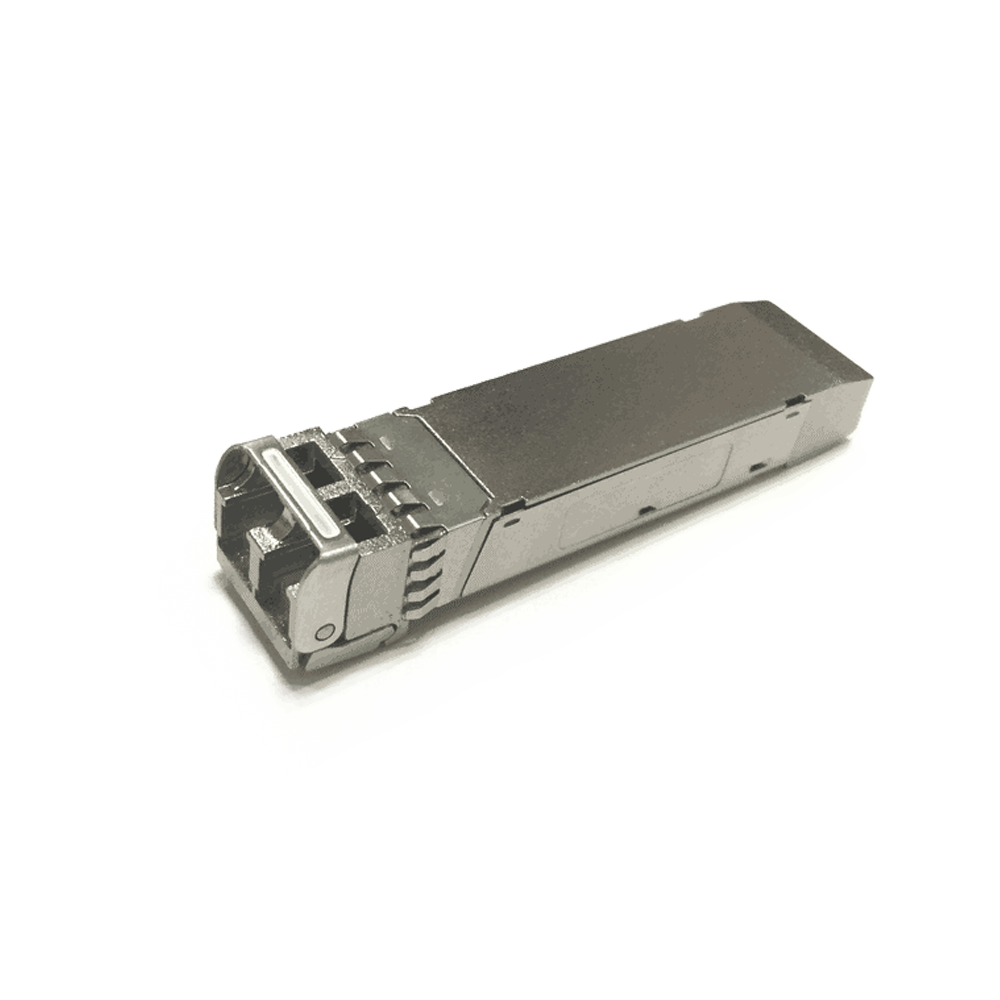

10G-ZR
The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 80km transmission distance with SMF.
The transceiver consists of three sections: a cooled 1550nm EML laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
WARNINGS - Handling Precautions: This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow guidelines according to proper ESD procedures.
Laser Safety: Radiation emitted by laser devices can be dangerous to human eyes.
Avoid eye exposure to direct or indirect radiation.
FEATURES
Supports 10Gb/s serial optical interface;
Up to 80km transmission on SMF;
Cooled 1550nm EML laser and APD receiver;
Hot-pluggable SFP+ footprint;
SFI high speed electrical interface;
Built-in digital diagnostic functions;
Single +3.3V power supply;
Power consumption less than 1.8 W;
Operating case temperature: -5~+70°C;
SFP+ MSA package with duplex LC connector;
APPLICATIONS
10GBASE-ER/EW 10G Ethernet;
Other optical links;
STANDARD
Compliant with SFF-8472 and SFP+ MSA;
Compliant to SFF-8431 and SFF-8432;
Compliant with IEEE 802.3ae 10GBASE-ER/EW;
Compliant with FCC 47 CFR Part 15, Class B;
Compliant with Telcordia GR-468-CORE;
RoHS Compliant;
