10U System OLT

10U System OLT

SKU: 1116-OT

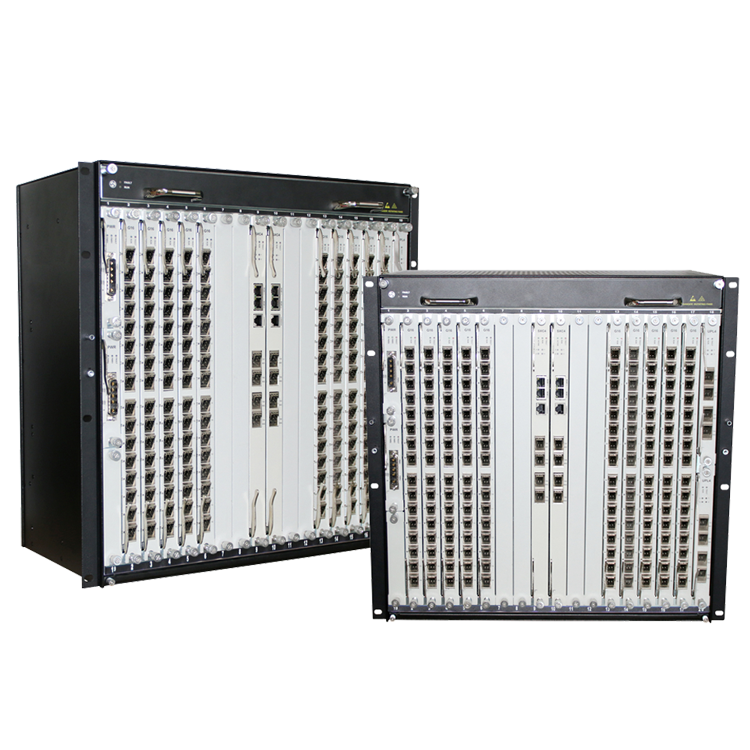

1116-OT 10U chassis is high density universal OLT, it adopts the advanced technology and ASIC chip. The single OLT card in 1116-OT can support up to 16 PON ports, single chassis can support up to 224 PON ports and can manage up to 28672 remote ONUs. Besides the 14 universal PON slots, it supports multiple 1 plus 1 redundancy pair slots including two Switching &Controller slots, two Uplink slots and two Power slots, which enhances the system reliability and stability.
1116-OT is fully compliant with related ITU-T and IEEE standards, can interwork with different types of ONU from different vendors. It is based on the mature and robust Giga OS software platform from Giga Telecom, system has high reliability and stability. 1116-OT supports network management via CLI and SNMP, with good user interface, easy to operate. It is an OLT product suitable for large capacity GPON network deployment.

  • PHYSICAL CHARACTERISTICS

    Exchange Capacity: 720 Gbps;



    Exchange Control Board:

    2 slots, each board integrated switch architecture and system control platform, support 1+1 backup;



    Service Port:

    14 blocks of GPON service boards;

    Each board has a maximum of 16 GPON ports;

    The entire system supports 224 GPON ports;



    Uplink Port:

    2 uplink boards;

    Each uplink board supports four 10GE ports (SFP+);

    Each exchange control board supports four 10GE uplink ports1plus 1DC: Input -40.5V~-72V;

    The whole system supports 16 10GE uplink ports at most;



    Power Supply Board:

    DC power supply supporting 1+1 backup;

    Voltage input range for each power supply board: -38V to -72V;



    Power Consumption:

    Maximum: 1080W



    Chassis Dimension (W*D*H) (mm):

    Chassis: 440*248*466;

    Chassis + bracket: 482*248*466;



    Environmental Parameters:

    Operating temperature: -5oC~45oC;

    Storage temperature: -40oC~70oC;

    Relative humidity: 10%~90% (no condensation);

  • TECHNICAL SPECIFICATIONS

    PON Features

    Compliance with ITU-T G.988 and operator related standards;

    Each PON port supports up to 128 GPON ONU;

    Support of 5 types bandwidth profile;

    Support of multiple ONU authentication mechanisms, such as LOID, SN, Password, and combined authentication;

    Support of ONU information report;

    Support of ONU auto register;

    Support of DBA (Dynamic Bandwidth Allocation);

    Support of ranging and logical distance configuration;

    Support of upstream and downstream FEC enabling/disabling;

    Support of AES encryption;

    Support of ONU service batch upgrade;

    Support of PON port-isolate;

    Support of configure ONU management IP;

    Support TR069;

    Support of ONU UNI port MAC address filtering;

    Support of ONU UNI port status check;

    Support PON port and ONU RSSI related attributes alarm;

    Support ONU capability set query;

    Support SFU UNI port status query;

    Support ONU remote batch upgrade;



    System Function

    Support fan speed automatic control and manual control;

    Support system-level temperature alarm threshold configuration;

    Support SXC board standby and backup 1 +1 protection;

    Support 1+1 protection for power board;

    Support service board power-saving features;



    Ethernet Features



    VLAN

    Support of 4K VLAN entries;

    Support of QinQ based on port or service flow;

    Support VLAN additions, deletions, conversions, and transmissions;



    Generation Tree

    Support STP/RSTP/MSTP;

    Loop detection supporting remote ONU;



    Port Management

    Support bidirectional bandwidth control;

    Support static and LACP aggregation groups;

    Support port mirrors and service mirrors;

    Support port SFP information reading;

    Support port RSSI configuration and alarm;



    Multicast

    Support IGMPv1/v2/v3;

    Support IGMP Snooping/Proxy;

    Support MLD Snooping/ Proxy;

    Support static multicast configuration;

    Support for inter-VLAN multicast;



    PPPoE

    PPPoE+



    wQoS

    Support service flow rate limit of both upstream and downstream;

    Support downlink, simple scheduling and hierarchical scheduling;

    Support QoS into the queue mapping up and down;

    Support queue priority scheduling (SP/WRR/SP+WRR) function;



    L3 Functions



    DHCP

    DHCP-Relay;

    DHCP-Snooping;

    DHCP-Option82;



    VLANIF

    Configuring L3 interface addresses;



    ARP

    Arp-agent;



    Routing

    Static routing;

    Default routing;

    Support OSPFv2;



    Security Features



    User Security

    Support port and ONU isolation function;

    Support MAC filtering;



    Equipment safety

    Support anti-DoS attacks;

    Support user classification to prevent unauthorized users from illegal invasion;



    Cyber security

    Support port broadcast / multicast packet suppression;

    Supports flow classification and flow definition based on IP packet header information such as source / destination MAC address, VLAN, 802.1p, ToS, DiffServ, source / destination IP address (IPv4 / IPv6), TCP / UDP port number, protocol type;

    Support for L2-L7 ACL flow classification at packet depth of 80 bytes;

    Support business flow strategy, including mirroring, redirection, statistics, filtering;



    Network Management

    Support the management based on serial port (serial);

    Support the management based on the command line interface (CLI);

    Support the network management of NMS based on SNMP;
