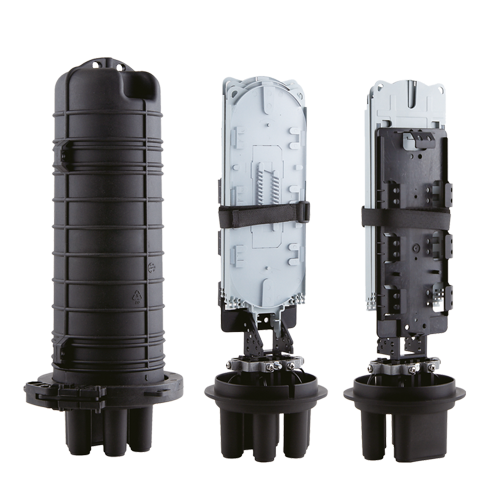

96 Cores Dome Closure
Capacity: 96 cores, dome heat shrinkable
Overall dimension: Height 490mm, DOME inner diameter: 138mm
Cable entries: one ellipse entry 70x35mm
4 circle entries: diameter 20mm.
FEATURES
- The box add ageing-resistant in imported high tensile construction plastic out-faster is made up of stainless steel;
- Overlap structure in splicing tray easy to install;
- Suitable for ordinary fiber and ribbon fiber;
- Perfect leak proofness and fine function;
- Perfect and reliable sealing operations;
- Full accessories for convenient operations;
- Fiber optic splice closure can be used repeatedly;
- High reliability;
- For aerial, and direct buried applications;
TECHNICAL SPECIFICATIONS
Temperature
-40 to +80 degrees Celsius
Atmosphere
70 to 106kpa
Sealing property at normal temperature: Internal pressure: 70 KPa, without decrease in 72 hours.
High temperature sealing property: internal pressure: 70KPa, without decrease in 168 hours at 60 degree;
Insulated resistance
>2 x 104MΩ;
Intensity
15KV (DC) not being broken down, has no flying arc;
Add ional Loss
No additional loss when optic fibers are winded in the splice trays;
The-ageing time of the material of the enclosure is beyond 20 years;
ACCESSORIES
• Buffer tube
• Heat shrink tube
• Tie
• Wall & pole mount accessories
• Sleeve
• Alcohol tissue
• Numberim
• Desiccant
• PVC tape
• Sands paper
• Foil
• Branching clip
• Stainless strip for wall pole mount
