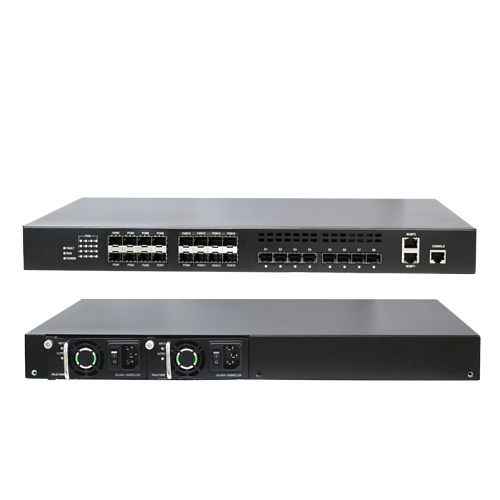

GPON OLT 16 PON
GPON OLT 1016-OT is high density 1U pizza box, it adopts the advanced technology and Broadcom ASIC chip. 1016-OT is fully compliant with ITU-T G.988 GPON standards, can interwork with different types of ONU from different vendors. It is based on the mature and robust Giga OS software platform from Giga Telecom system has high reliability and stability. 1016-OT supports network management via CLI and SNMP, with good user interface, easy to operate.
1016-OT provides the highest GPON port density in 1U box in the industry, which has 16 ports GPON, 2 ports 10GE or 8 ports GE uplink. Single GPON port can manage 128 ONUs, one equipment can manage up to 2048 ONUs. The device is easy to install and commissioning, minimising operators’ investments, it is the best suitable for service provider to deploy GPON based FTTH network.
TECHNICAL SPECIFICATIONS
PON FEATURES
Compliance with ITU-T G.988 and operator related standards;
Each PON port supports up to 128 GPON ONU;
Support of 5 types bandwidth profile;
Support of multiple ONU authentication mechanisms, such as LOID, SN, Password, and combined authentication;
Support of ONU information report;
Support of ONU auto register;
Support of DBA (Dynamic Bandwidth Allocation);
Support of ranging and logical distance configuration;
Support of upstream and downstream FEC enabling/disabling;
Support of AES encryption;
Support of ONU service batch upgrade;
Support of PON port-isolate;
Support of configure ONU management IP;
Support TR069;
Support of ONU UNI port MAC address filtering;
Support of ONU UNI port status check;
Support PON port and ONU RSSI related attributes alarm;
Support ONU capability set query;
Support SFU UNI port status query;
Support ONU remote batch upgrade;
Loop detection supporting remote ONU;
Support ONU MAC-move alarm;
SYSTEM FUNCTIONS
Support redundancy of power supply (including AC/DC);
ETHERNET FEATURES
VLAN
Support of 4K VLAN entries;
Support of QinQ based on port or service flow;
Support of VLAN add, remove, translate and transparent per ONU service flow based;
Spanning Tree
Support STP/RSTP;
Port Management
Support bidirectional bandwidth control;
Support static and LACP aggregation groups;
Support port mirrors and service mirrors;
Support port RSSI configuration and alarm;
Multicast
Support IGMPv1/v2/v3;
Support IGMP Snooping/Proxy;
Support MLD Snooping/ Proxy;
Support static multicast configuration;
Support for inter-VLAN multicast;
PPPoE
PPPoE+
wQoS
Support service flow rate limit of both upstream and downstream;
Support downlink, simple scheduling and hierarchical scheduling;
Support QoS into the queue mapping up and down;
Support queue priority scheduling (SP/WRR/SP+WRR) function;
L3 FUNCTIONS
DHCP
DHCP-Relay;
DHCP-Snooping;
DHCP-Option82;
VLANIF
Configuring L3 interface addresses;
ARP
Arp-agent;
Routing
Static routing;
Default routing;
SECURITY FEATURES
User Security
Support port and ONU isolation function;
Support MAC filtering Support of binding among IP, MAC, VLAN and port;
Device Security
Support anti-DoS attacks;
Support user classification to prevent unauthorized users from illegal invasion;
PHYSICAL CHARACTERISTICS
Switching Capacity: 60 Gbps;
PON Interface: 16 ports GPON;
Uplink Interface: 2 ports 10G (SFP+) or 8 ports GE;
Power Supply:
1 plus 1 AC: Input 100~240V, 47~63Hz;
1plus 1DC: Input -40.5V~-72V;
Power Consumption:
Normal Temperature: 88W;
High Temperature: 105W (50∞C);
Dimensions(W*D*H):
445mm*340mm*44.5mm;
487mm*340mm*44.5mm (With hanger);
Environment:
Working Temperature: -5∞C~50∞C;
Storage Temperature: -40∞C~70∞C;
Relative Humidity: 10%~90%, no condensing;
